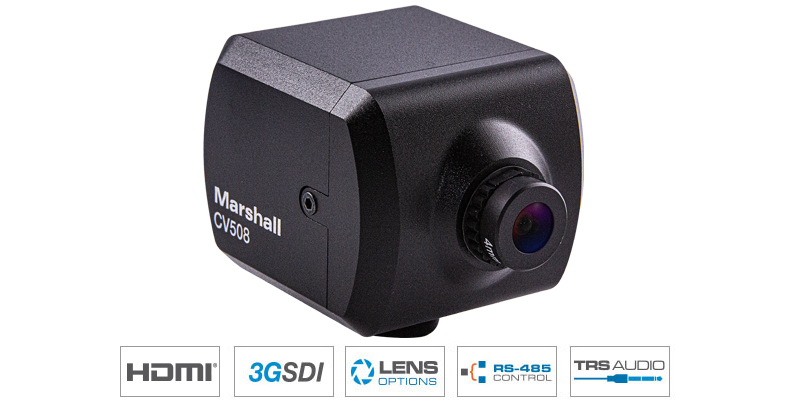

Marshall Electronics CV508 Micro POV Camera HDMI + 3GSDI, Incluye Tripie CVM-18

Interchangeable M12 Lenses

Marshall CV508 cameras come with a high-quality 4.0mm (78.8° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..

Durable, Flexible, Powerful

The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
- 2.2 Megapixel Sony sensor with square pixel array and larger pixels
- CV-4704.0-3MP – Interchangeable 4.0mm lens with 78.8° Horizontal AOV
- HDMI & 3GSDI (10bit, 4:2:2, BT.709) with remote adjust & match
- 1920x1080p, 1920x1080i & 1280x720p resolutions selectable
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Control via CV-RCP-V2, Camera Control Software and/or a variety of 3rd party sources
- Micro-USB port for field upgradeable firmware via PC
- Locking Hirose cable (included) for OSD menu joystick, RS485, AUDIO and power
- Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
- Weight: 0.3lbs (0.136kg); approx dims: 40mm x 44mm x 55mm
- Power: 12V+/-10% drawing 2.76W (max 6W)
Applications:

The Micro CV508 is suitable for use in HDMI & 3GSDI workflows simultaneously where image quality, versatility and durability are of utmost concern, including live broadcast, production, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship, confidence monitoring, aerospace, and many, many more.
